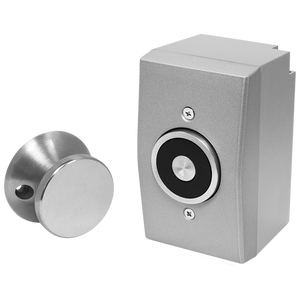

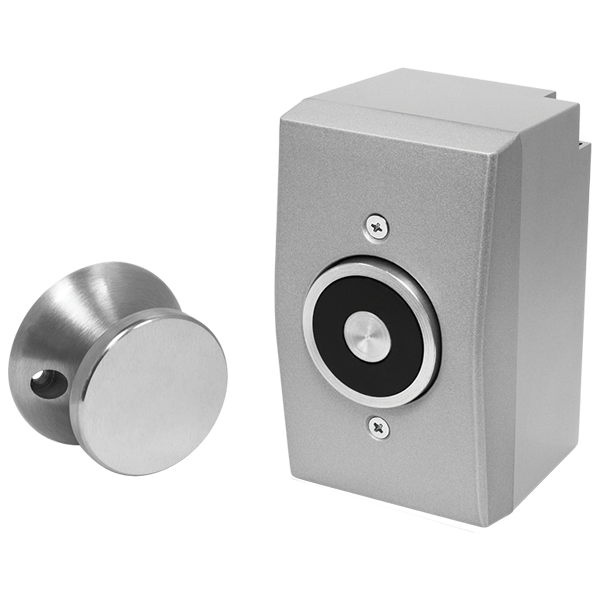

SECO LARM Magnetic Door Holder - Surface-Mount, UL Listed

Part # DH-151SQ

• For use with door closers to control the release and closing of residential, commercial, and public area doors
• Adjustable armature plate reduces installation time and adjusts to door alignment changes
• Low profile design
• Holding force – 33-lb (15kg)
• 3 voltages: 12/24 VAC/VDC, and 120VAC
• Cast aluminum faceplate
• No residual magnetism for easy release
• Built-in voltage spike suppressor
• Use with SECO-LARM door closers
• Optional extension bars available: 3/4″, 1″, 4″, 7″ (19mm, 25mm, 102mm, 178mm)
• Use with SECO-LARM door closers SD-C121-S, SD-C131-SQ, SD-C101-SGQ, or SD-C101-SBAQ

Spec Sheet
