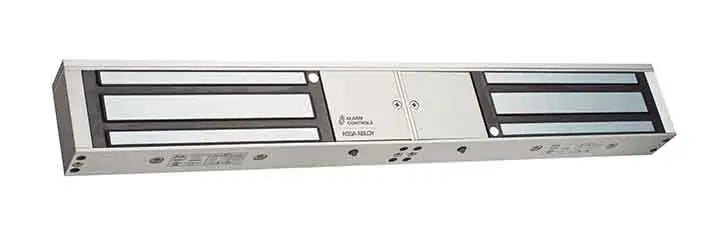

1200D Double Magnetic Lock | Alarm Controls

1200D Double Magnetic Lock | Alarm Controls

Regular price $339.88 $0.00 Unit price per

Part # 1200D

Built to provide 1200 lbs of holding force, per door, for double door configurations, this easy to install magnetic lock includes LED status indicator, bond sensor and door status sensor to signal a powered and securely locked door. Ideal for interior or exterior applications.

Features

Standard Features

  • Built-in arc suppression
  • Instant release, no hysteresis
  • Self-drilling TEC screws
  • Non-aluminum parts are plated to resist corrosion
  • E-Z mount header bracket and template provided for easy installation, no special tools required
  • Can be used with any access control system
  • Bond sensor and door status sensors plus bi-color LEDs signal a powered and securely locked door
  • Clear anodized (US28) finish standard
  • Limited lifetime warranty

Options

  • DURO Duranodic finish (US 40) available, specify when ordering
  • Dress covers in polished chrome and brass are available. See "Magnetic Lock Accessories" for options.

Specifications

Certifications & Listings

  • UL 294 listed
  • UL 10C fire rated
  • CAN/ULC-S104 fire door conformant
  • ULC-S527 listed
  • UL 864 listed

Holding Force: 1200 lbs, per magnet

Dimensions

  • Magnet size: 21" L x 2-7/8" H x 1-1/2" W
  • Armature size: 7-1/2" L x 2-3/8" H x 5/8" W

Electrical

  • 12 or 24 VDC, field selectable
  • Current draw, per magnet: 505 mA at 12VDC, 260 mA at 24 VDC
  • Bond sensor has SPDT 3A relay contacts, per magnet

Operating Temperature: +14 to +131F [-10 to +55C]





Catalog Page
1200D Installation Instructions
Magnetic Lock & Accessories Cross-Reference Guide
Magnetic Lock Comparison Chart
