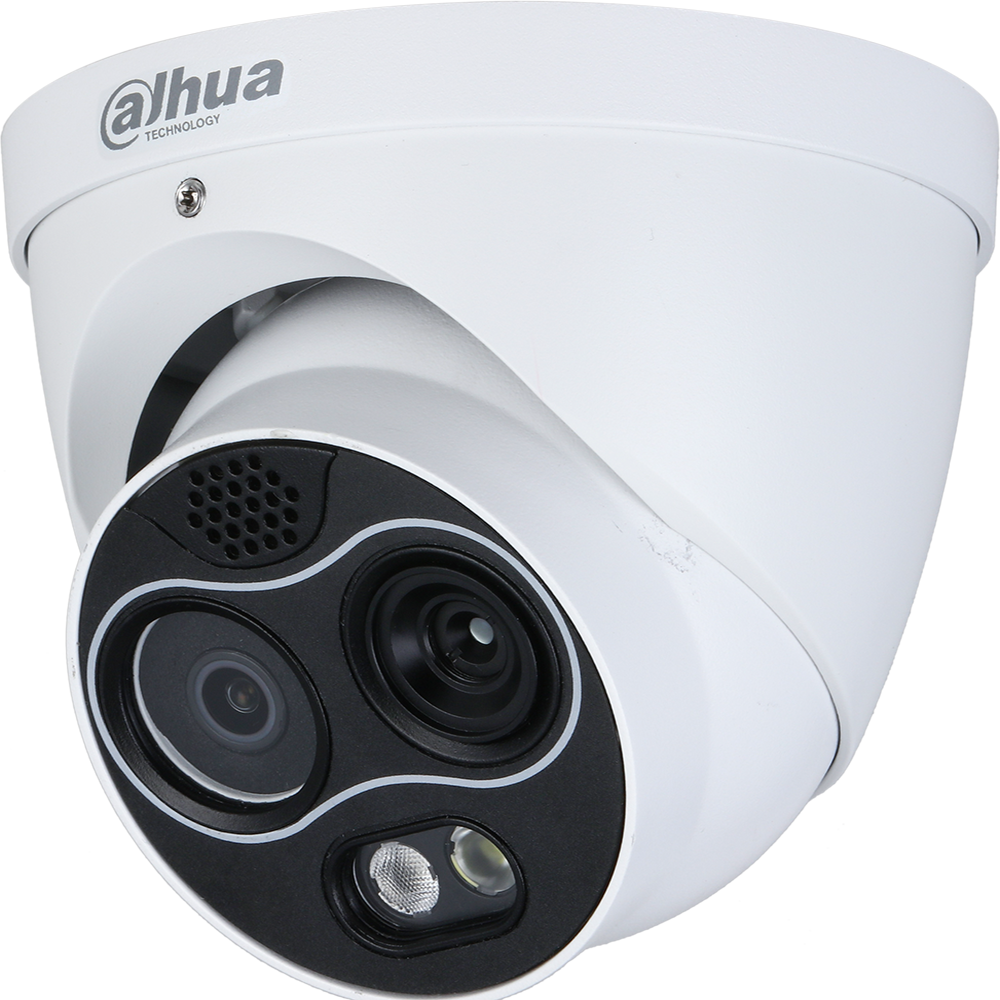

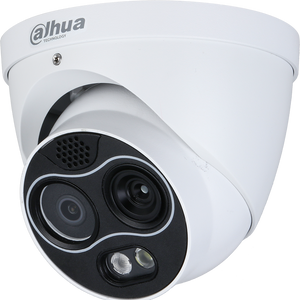

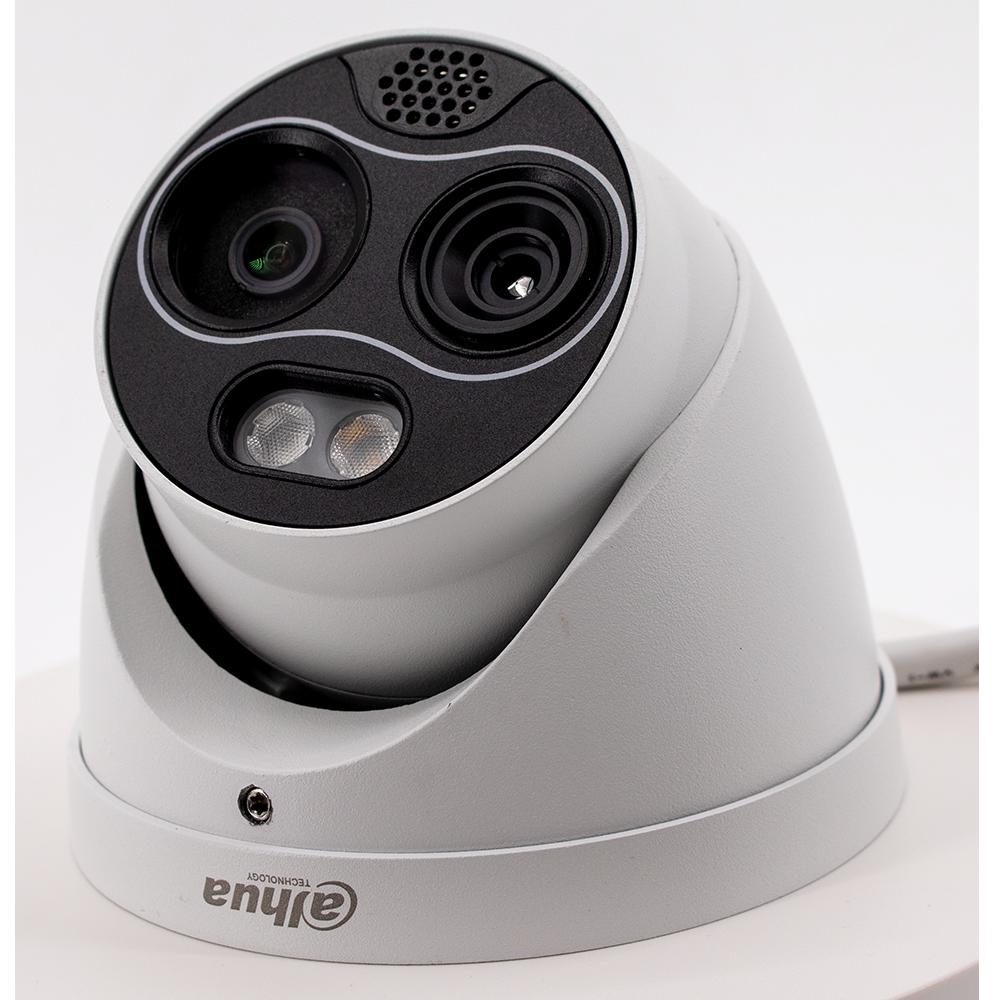

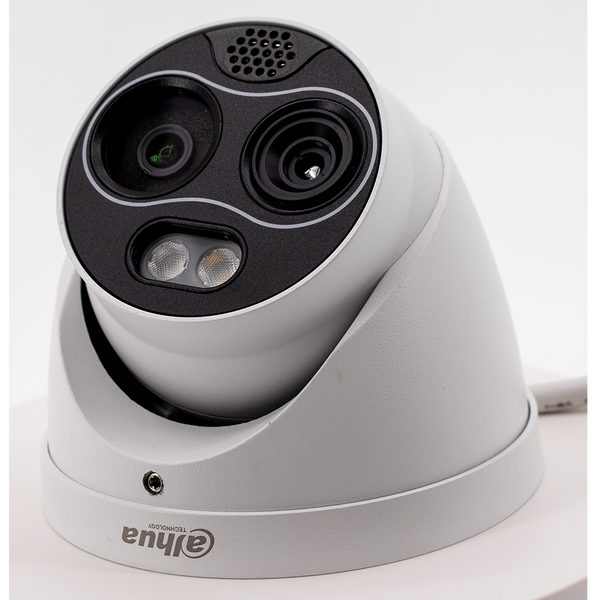

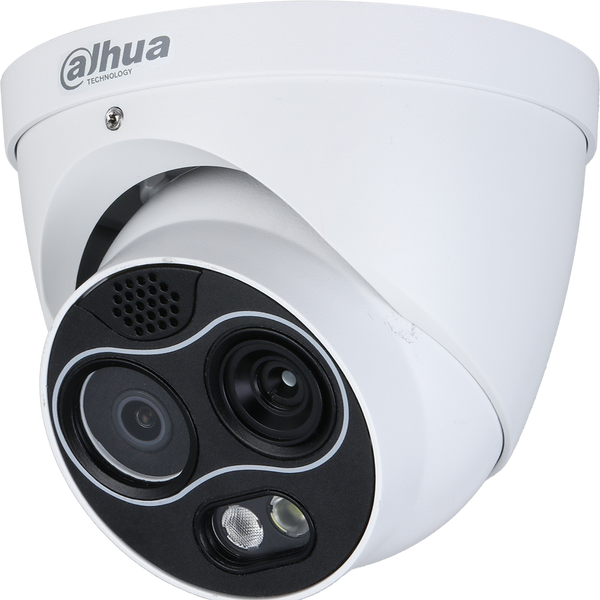

Dahua | 256 x 192 Hybrid Thermal Network Eyeball Camera | Part # DH-TPC-DF1241N

Regular price $0.00 $0.00 Unit price per

Part # DH-TPC-DF1241N


The Hybrid Thermal Network camera combines an uncooled VOx 256 x 192 thermal imager with a 4 MP visible-light sensor for cost-effective, long-range surveillance in a rugged all-in-one package. The thermal imager coupled with an athermalized, focus-free lens produces crisp images in total darkness and sees through rain, fog, and snow. The visible imager with an IR illuminator delivers superior video in any lighting condition. The built-in Fire Detection and Smoking Detection features identifies a potential issue and issues an audible and visual alert. Hybrid thermal cameras let you see the visible and the invisible.

Thermal Camera

  • 256 x 192 VOx Uncooled Thermal Sensor Technology
  • Athermalized Lens, Focus-free
  • 2 mm, 3.5 mm, or 7 mm Fixed Thermal Lens Options
  • ≤ 50 mK Thermal Sensitivity

Visible-light Camera

  • 1/2.7-in. 4 MP Progressive-scan CMOS Sensor
  • 2 mm, 4 mm, or 8 mm Fixed Lens Options
  • Maximum IR Distance 30 m (98.43 ft)

System Features

  • Intelligent Video System with Fire Detection and Alarm Functionality
  • Smart Alarm with Voice Prompt and White Light for Active Alarm
  • IP67 Ingress Protection
  • Five-year Warranty (for products sold through an authorized Dahua dealer)

Lens Options Sizes:

  • Thermal : 3mm,    Visible-light : 2mm
  • Thermal : 3.5mm, Visible Light: 4mm
  • Thermal : 7mm,    Visible-light: 8mm


Spec Sheet
