Regular price $621.89 $0.00 Unit price per

Part # DTK-RM16NETS



Description

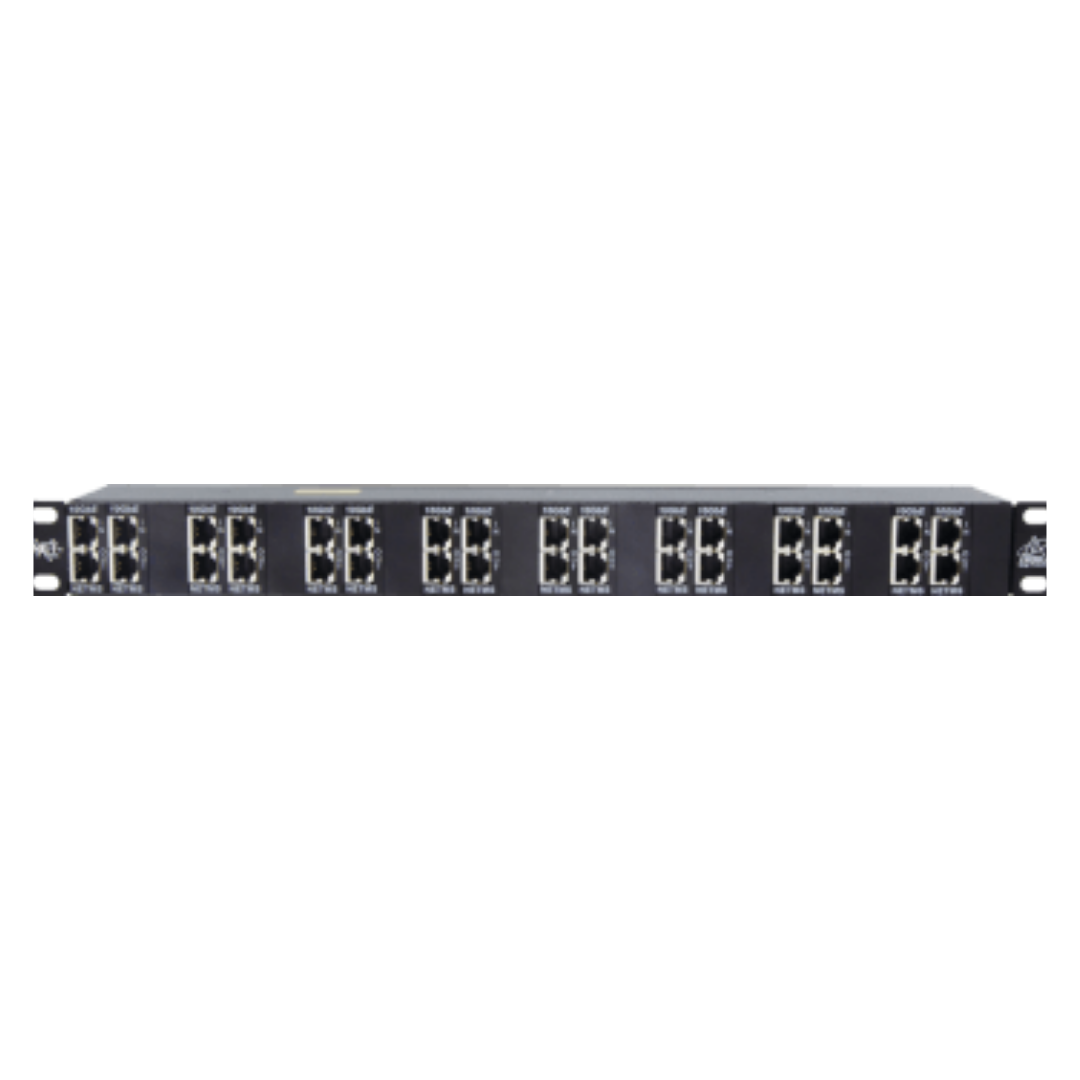

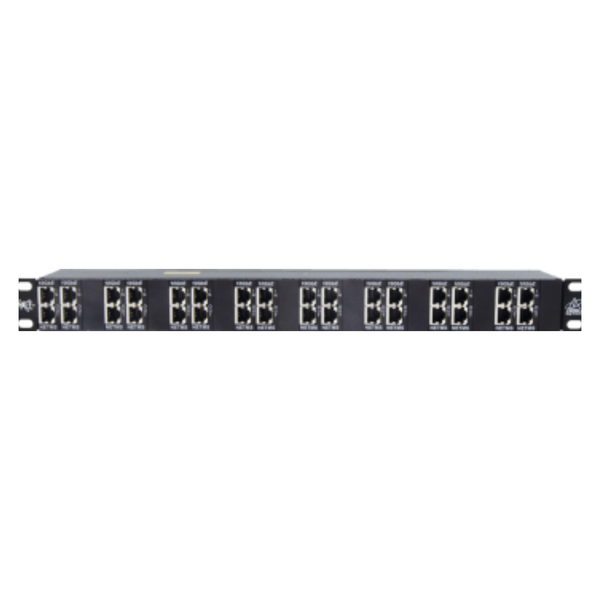

The DTK-RM16NETS is a 16-channel, upgradeable, 1U rack mount surge protector that uses state-of-the art circuitry to provide best-in-breed surge protection for shielded Ethernet, PoE and optional PoE extender circuits. The DTK-RM16NETS supports data speeds up to 10GbE, and provides surge protection grounding to remote devices when used with STP cabling. The DTK-RM16NETS is ideal for installations with multiple Ethernet cabling feeds that require protection before entering network switches.

  • Uses SAD and GDT technologeis to provide optimal protection for shielded Ethernet, PoE, PoES and PoE extender circuits

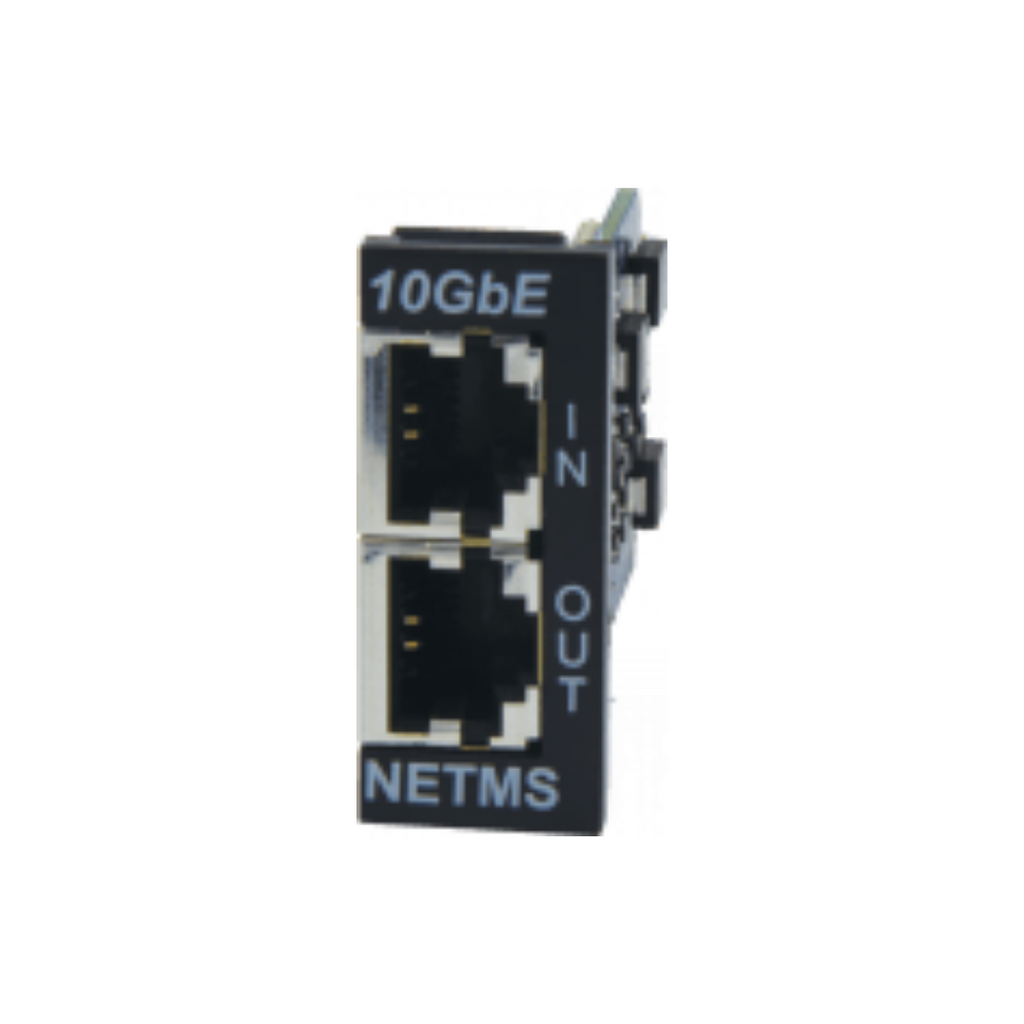

  • Rapid-replacement modular design allows modules to be swapped from front of device without removing from rack
  • Robust 20kA per pair surge current capacity is the highest offered in a product designed for shielded network devices
  • PoE Plus and HiPoE ready for high-wattage applications
  • Optional modules available to support PoE Extender Circuits
  • Supports up to 24 modules in a single enclosure

Network Surge Protection Hot Sheet

Spec Sheet

Installation Guide
