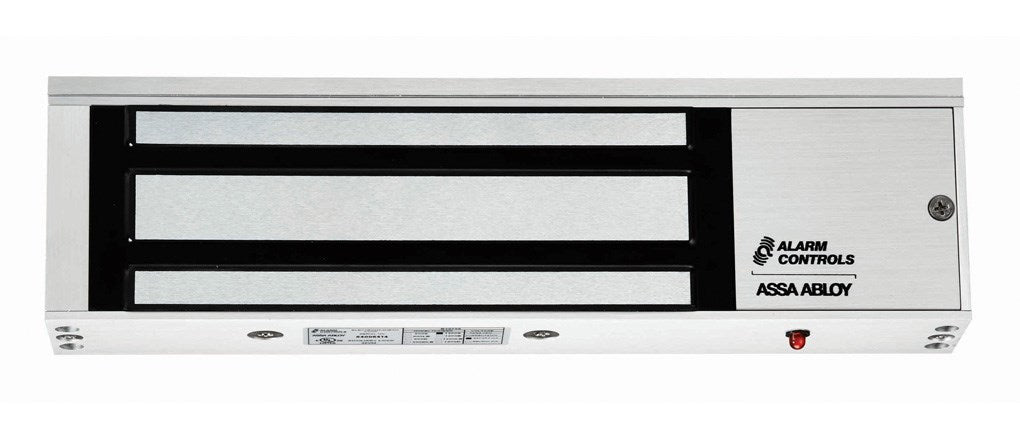

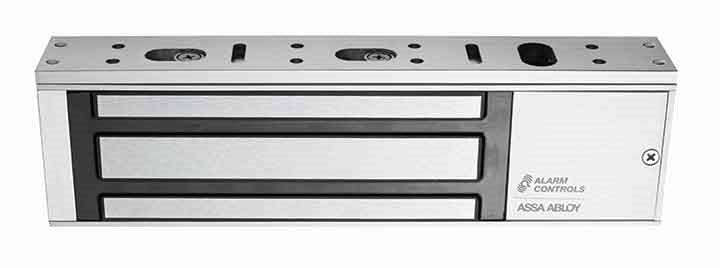

1200LB Single Magnetic Lock | Alarm Controls

Regular price $204.89 $0.00 Unit price per

Part # 1200LB



Bracket mounted, single magnetic lock with 1200 lbs holding force that can be easily installed without special tools and used with any access control system. Ideal for high-use areas for traffic control in interior applications. Available with LED, bond sensor and door status signaling options.

Features

Standard Features

  • 1200S Standard model
  • 1200L Magnetic lock with LED status indicator
  • 1200LB Magnetic lock with LED status indicator, bond sensor, and door status sensor
  • Built-in arc suppression
  • Instant release, no hysteresis
  • Self-drilling TEC screws
  • Non-aluminum parts are plated to resist corrosion
  • E-Z mount header bracket and template provided for easy installation, no special tools required
  • Can be used with any access control system
  • Clear anodized (US28) finish standard
  • Limited lifetime warranty

Options

  • DURO Duranodic finish (US 40) available, specify when ordering
  • Dress covers in polished chrome and brass available. See "Magnetic LockAccessories" for options.

Specifications

Certifications & Listings

  • UL 294 listed
  • UL 10C fire rated
  • CAN/ULC-S104 fire door conformant
  • UL 864 listed
  • CAN/ULC-S527 listed

Holding Force: 1200 lbs

Dimensions:

  • Magnet size: 10-1/2" L x 2-7/8" H x 1-1/2" W
  • Armature size: 7-1/4" L x 2-3/8" H x 5/8" W

Electrical

  • 12 or 24 VDC, field selectable
  • Current draw: 505 mA at 12 VDC, 260 mA at 24 VDC
  • 1200LB bond sensor has SPDT 3A relay contacts

Operating Temperature: +14 to +131F [-10 to +55C]





1200LB Installation Instructions
