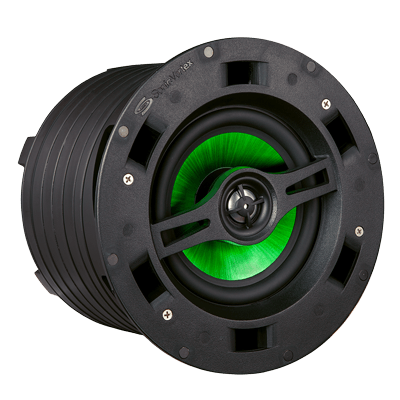

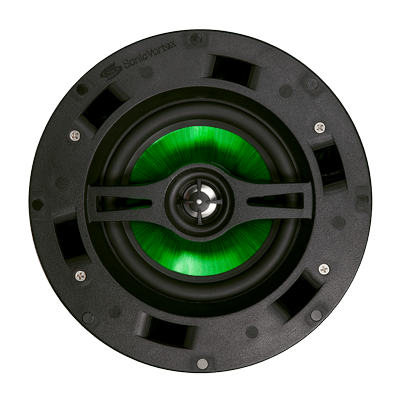

Vanco | IC6-MB 6.5” In-Ceiling Speaker

Part # IC6-MB

Description

• Speaker Type – In Ceiling 2-Way
• Woofer – 6.5” Fluted Injected Poly
• Tweeter – 1” Aluminum Dome
• Frequency – 43 Hz – 24 kHz
• Sensitivity – 89db
• Butyl Rubber Surround
• Sonic Vortex® Ported Transmission Line

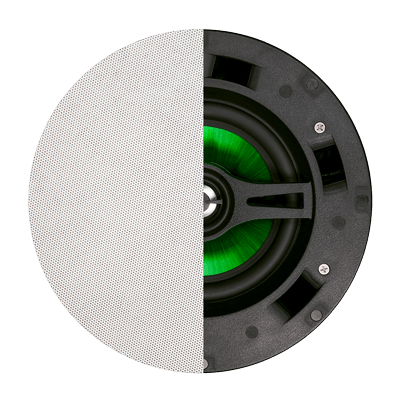

• Magnetic Bezelless Grille – White; paintable
• Impedance – 8Ω
• Connector Type – Gold Spring Push Terminal
• Depth – 6.8″ (172mm)
• Speaker Weight – 7.10 lbs (3.22kg)
• Cutout – 8.4″ (214mm)
• Diameter – 9.4″ (239mm)
• Power Handling – 5-120W
• Pivoting Tweeter
• EZBracket Size – F
• Highlights – Broader Sound, Deeper Bass

Installation Manual
