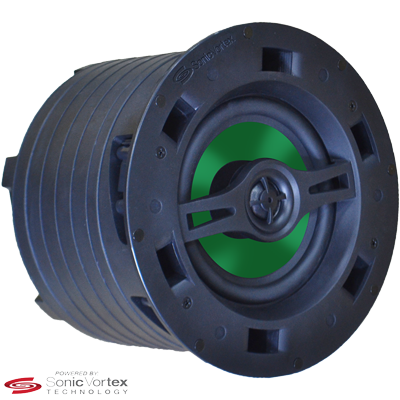

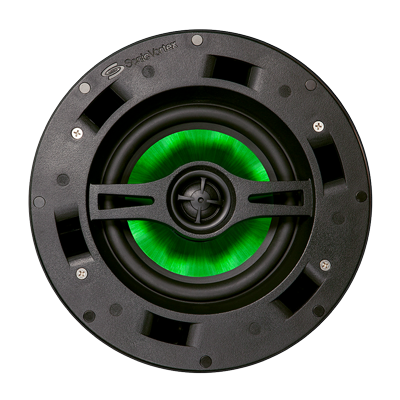

Vanco | IC6DVC-B 6.5” Dual Voice Coil Speaker

Part # IC6DVC-B

Description

• Speaker Type – In Ceiling Dual Voice Coil
• Woofer – 6.5” Poly
• Tweeter – 1” Silk Dome Dual Voice Coil
• Frequency – 46 Hz – 22 kHz
• Sensitivity – 89db
• Butyl Rubber Surround
• Sonic Vortex® Ported Transmission Line

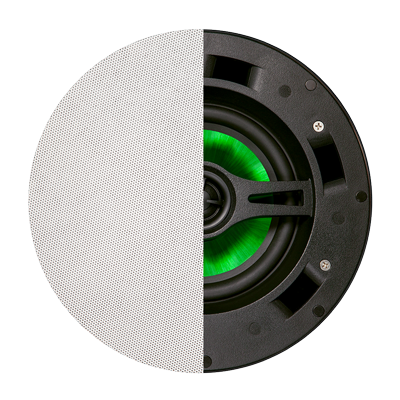

• Magnetic Bezelless Grille – White; paintable
• Impedance – 8Ω
• Connector Type – 4 Pin Terminal
• Depth – 6.8″ (172mm)
• Speaker Weight – 7 lbs (3.18kg)
• Cutout – 8.4″ (214mm)
• Diameter – 9.4″ (239mm)
• Power Handling – 5-90W
• Pivoting Tweeter
• EZBracket Size – F
• Highlights – Unique Single Tweeter DVC Design

Installation Manual
