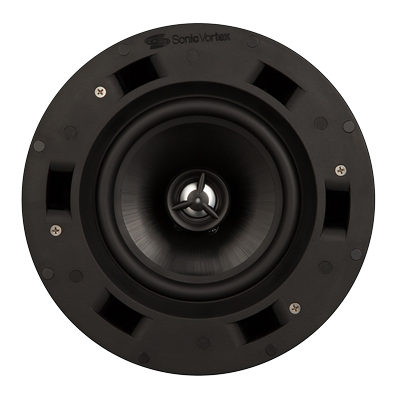

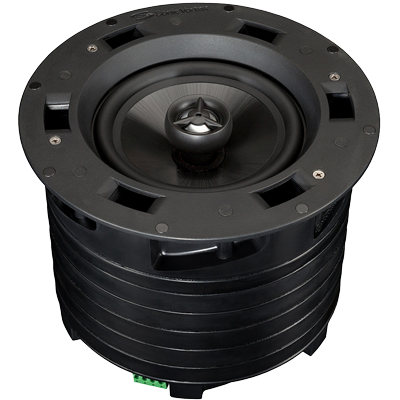

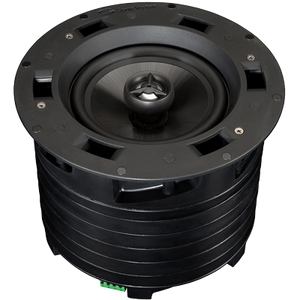

Vanco | TIC651 25/70/100V In Ceiling Speaker 6.5" 2-way Fluted IMPP, 1" ALU Dome

Part # TIC651

Description

• Speaker Type – In Ceiling/In Wall 2-Way
• Woofer – 6.5″ Fluted Injected Poly
• Tweeter – 1″ Aluminum Dome

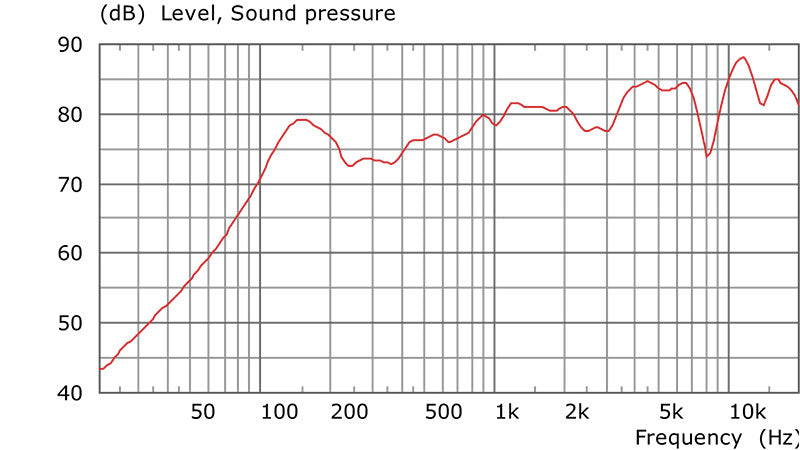

• Frequency – 48 Hz – 24 kHz
• Sensitivity – 89db
• Butyl Rubber Surround
• Sonic Vortex® Ported Transmission Line
• Magnetic Bezelless Grille – White; paintable
• Low Impedance – 8Ω

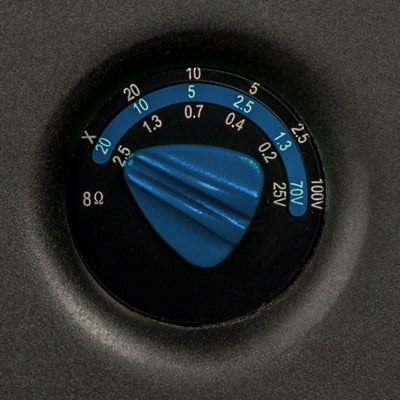

• 25V Taps – 0.2, 0.4, 0.7, 1.3, 2.5 Watts
• 70V Taps – 1.3, 2.5, 5, 10, 20 Watts
• 100V Taps –  2.5, 5, 10, 20 Watts
• Power Handling – In 8Ω Mode – 5-120W
• Connector Type – Four position plug-in screw terminal
• Speaker Weight – 7.10 lbs (3.22kg)
• Cutout – 8.4″ (214mm)
• Diameter – 9.4″ (239mm)
• Depth – 6.8″ (172mm)
• EZBracket Size – F
• Highlights – 25/70/100 Volt Switchable

Installation Manual
